60T Heavy Crane arm for truck,60T Heavy Duty Rotary Crane for Peru

Product Categories

Dongfeng Special Vehicle Co., Ltd

Contact Now

Brand Name : PERFECT

Model Number : P60T

Certification : CCC

Place of Origin : Shiyan City,Hubei Province,China

MOQ : 1 Unit

Price : USD

Payment Terms : L/C, T/T

Supply Ability : 20 Units/Months

Delivery Time : 30 working days

Packaging Details : Nude,with wax painting

Brand : PERFECT

Load capacity : 60T

suitable for : 8x4 truck chassis

Contact Now

Item		Main Specifications
Lift system	Max lift weight	25000kg
	Fully extended maximum lift weight	10000kg
	Maximum effective length of bracket arm	3338mm
	Extension stroke of bracket arm	1850mm
	Lift strap folding Angle	-7~16⁰
	Folding Angle	5⁰
	The maximum distance from the ground to the fork is fully extended	1120mm
Crane System	Max lift weight	60000kg
	Whole crane arm back,lifting ability of lifting angle with 30 °	17000kg
	Whole crane arm extended out,lifting ability of lifting angle with 30 °	6500kg
	Basic length of Crane arm	6500mm
	Oil cylinder extended out stroke	3700mm
	Max lifting height	15460mm
	Max working radius	13995mm
	Crane arm section number	3 sections
	Crane arm boom variation angle	0~60⁰
	Rotation angle	360⁰ Continuous rotary

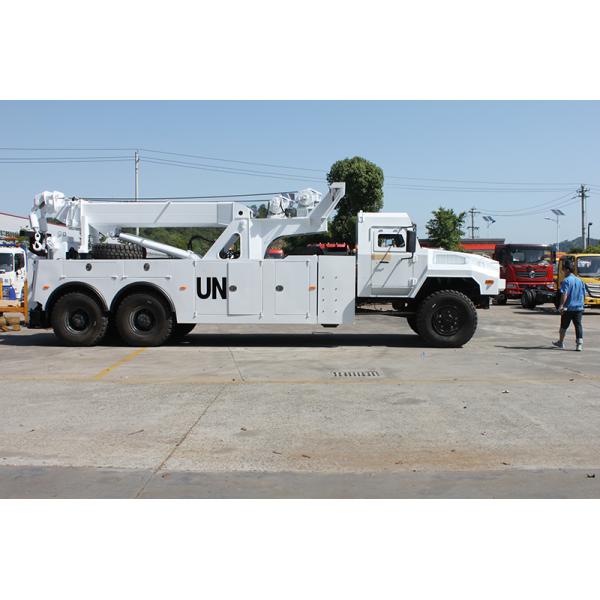

60T Heavy Crane arm for truck,60T Heavy Duty Rotary Crane for Peru

60T Heavy Crane arm for truck,60T Heavy Duty Rotary Crane for Peru Images
